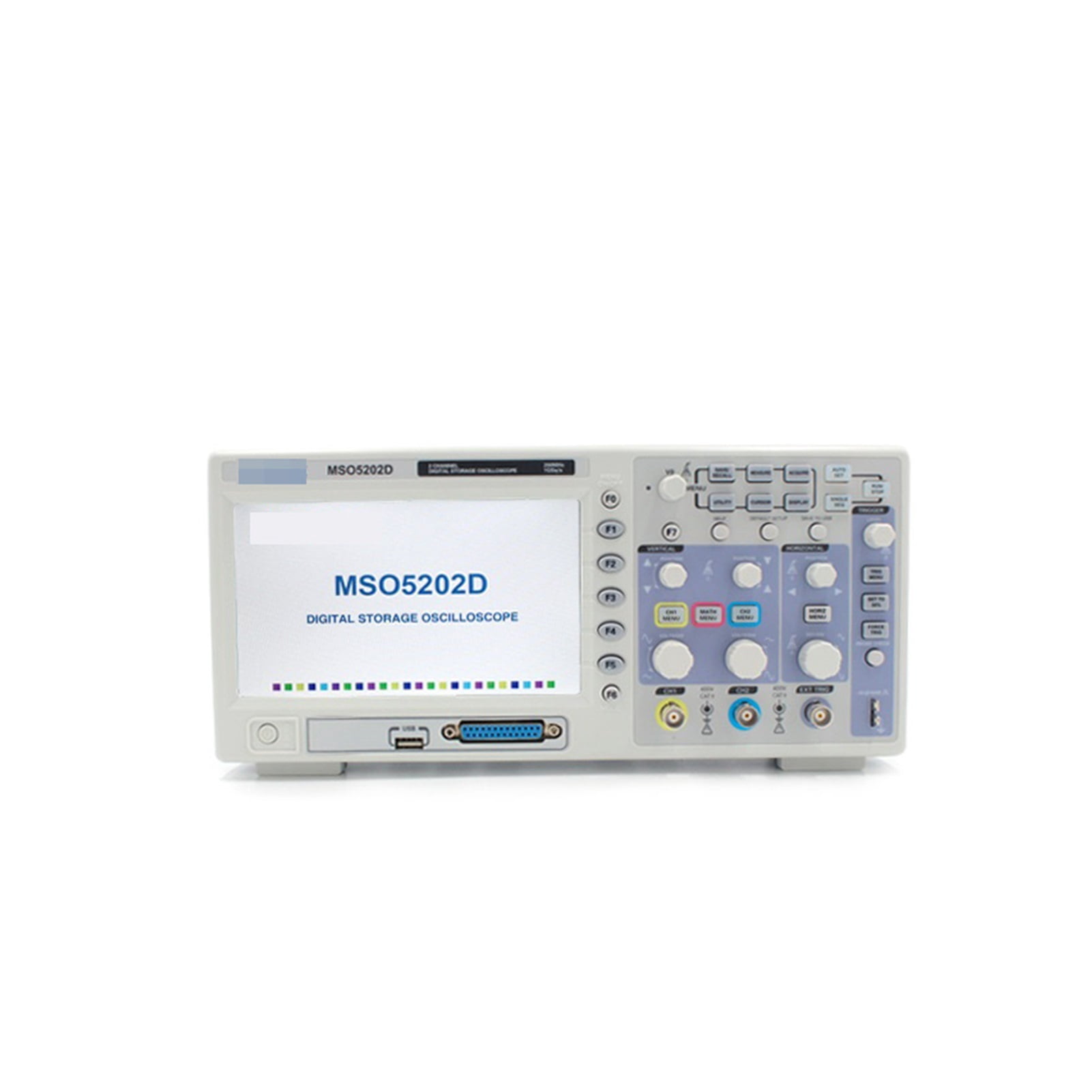

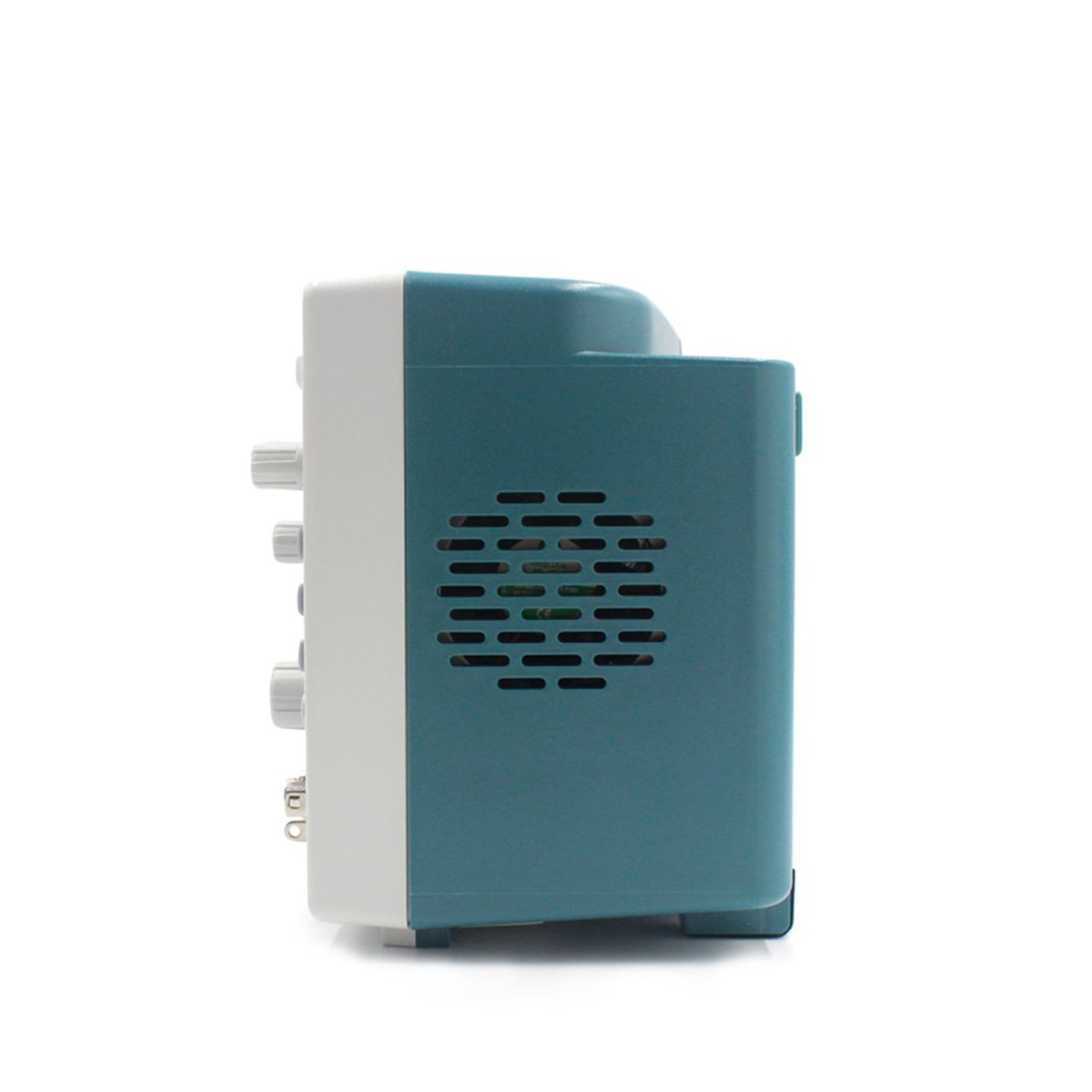

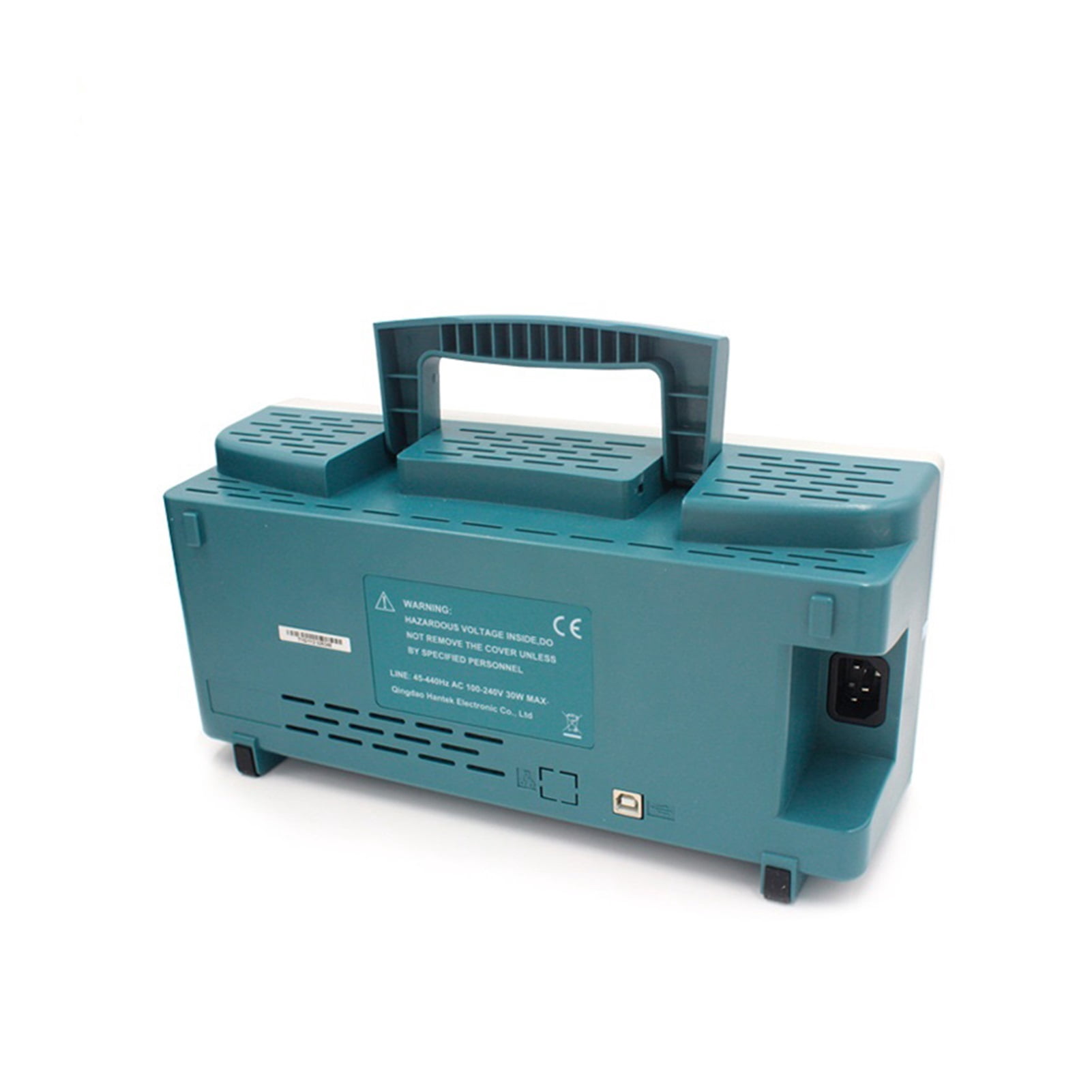

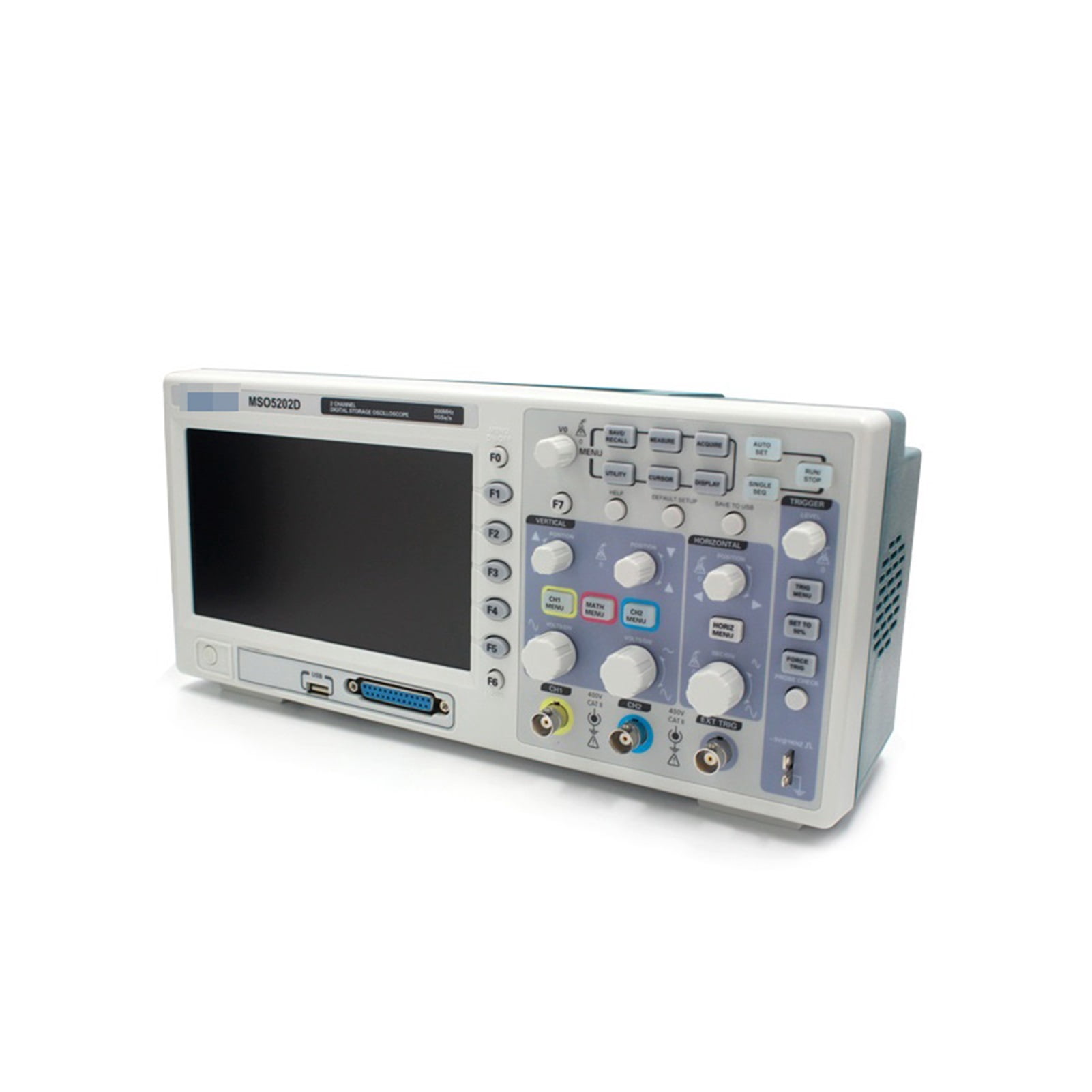

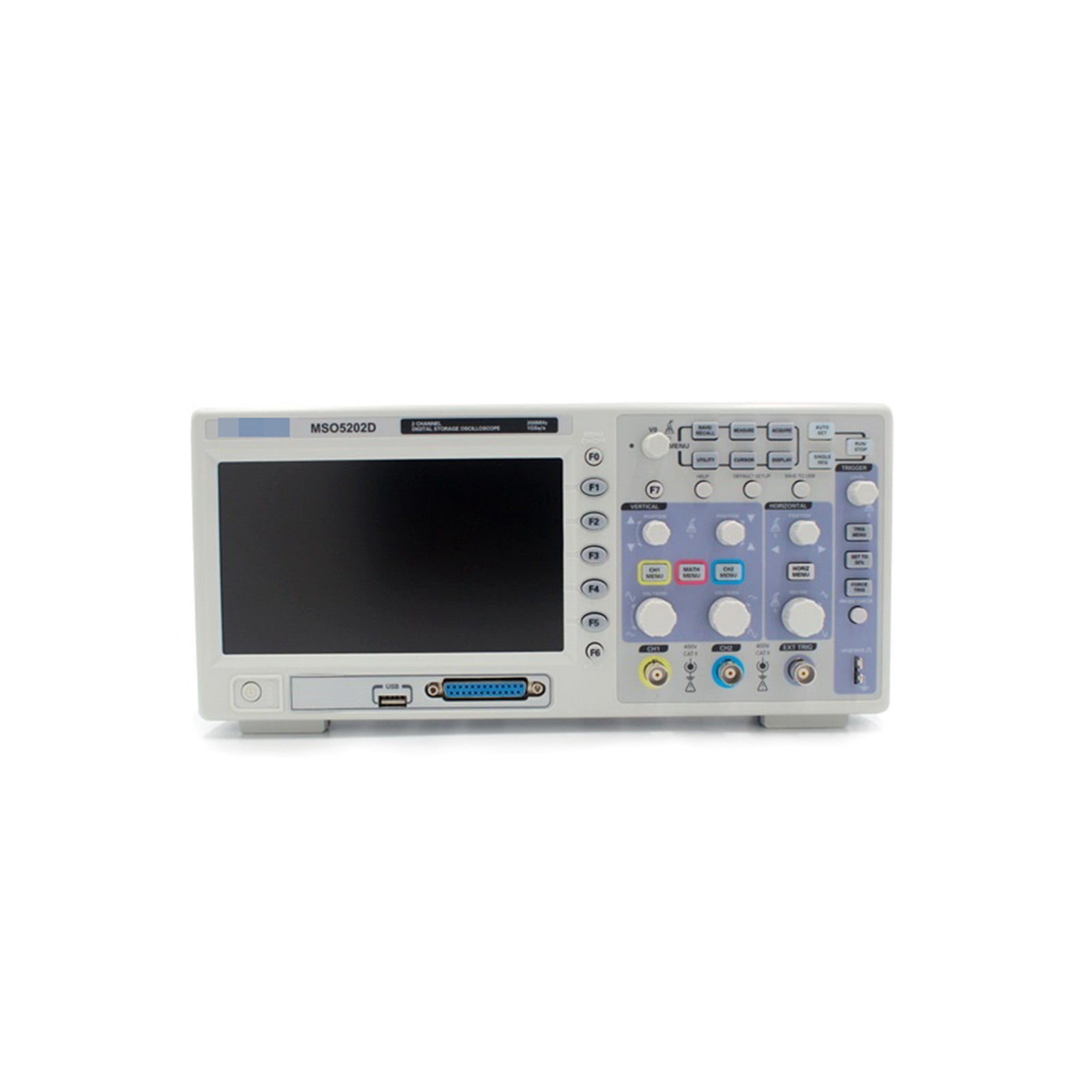

3-in-1 200MHz 2CH 1GSa / S Oscilloscope + 16CH Logic Analyzer + 2 Analog Channels + External Trigger Channel

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• MSO5202D 200MHz Oscilloscope & 16Ch Logic Analyzer 2in1
• Product Details
• MSO5000D Series
• Mixed Signal Oscilloscope;
• Bandwidth:60-200MHz;
• Real Time Sample Rate:1GSa/s;Record Length: 1M;
• Large (7.0-inch) color,WVGA(800x480);
• 16 channels Logic Analyzer,500MSa/s sample rate;
• Power Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
• Feature:
• 200/100/60MHz bandwidth
• 1GSa/s Real Time sample rate
• Large (7.0-inch) color ,WVGA(800x480)
• Record length up to 1M
• Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
• USB host and device connectivity, standard
• Multiple automatic measurements
• Four math functions, including FFTs standard
• Bandwidth
• 200MHz
• 100MHz
• 60MHz
• Channel
• 2
• Real-Time Sample
• 1GSa/s
• Equivalent Sample
• 25GSa/s
• Memory Depth
• 1M
• Rise Time
• 1.7ns/3.5ns/5.8ns
• Time Base Accuracy
• ±50ppm
• Time Base Range
• 4ns-40s/div
• 8ns-40s/div
• 8ns-40s/div
• Video Help
• --
• SD card
• --
• Input Impendance
• 1M
• VOLTS/DIV Range
• 2mV/div-5V/div
• A/D Converter
• 8 bit
• Position Range
• ±50V(5V/div), ±40V(2V/div-500mV/div),
• ±2V(200mV/div-50mV/div),±400mV(20mV/div-2mV/div)
• DC Gain Accuracy
• ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
• ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
• Bandwidth Limit
• 20MHz
• Trigger Types
• Edge, Video, Pulse, Slope, Over time, Alternative,Code-type, Duration, Queue, Repeat
• Trigger Source
• CH1, CH2, EXT, EXT/5, AC Line
• Math
• +,-,x,÷,FFT
• Cursor Measurement
• Voltage difference between cursors: V;
• Time difference between cursors: T;
• Reciprocal of T in Hertz (1/T);
• 7" 16K Color LCD, 800*480 dots
• Size
• 313mm x 108mm x 142mm
• Weight
• 2.08KG
• Standard Probe
• PP200x2
• PP150X2
• PP80X2
• Select
• Model
• Bandwidth
• Channels
• Sampling rate
• Other
• MSO5000D Series
• 200/100/60MHz
• 2CH+16CH(LA)+EXT
• 1GSa/s(Analog)
• 500MSa/s(LA)
• 7powerful trigger function,
• 1M Record Length, USB
• interface system upgrade,
• 16CH Logic Analyzer,
• 7'' LCD WVGA 800*480;
• VGA Optional
• DSO5000P Series
• 200/100/70MHz
• 2CH + EXT
• 1GSa/s
• 40K Record Length,
• USB interface system upgrade,
• 7'' LCD WVGA 800*480,
• Powerful trigger function;
• VGA Optional
• DSO5000B Series
• 200/100/60MHz
• 2CH+EXT
• 1GSa/s
• 1M Record Length,
• USB interface system upgrade,
• 7'' LCD WVGA 800*480,
• 7powerful trigger function;
• VGA Optional
• DSO5000BM Series
• 200/100/60MHz
• 2CH+EXT
• 1GSa/s
• 2M Record Length,
• USB interface system upgrade,
• 7'' LCD WVGA 800*480
• 7powerful trigger function;
• VGA Optional
• DSO5000BMV Series
• 200/100/60MHz
• 2CH+EXT
• 1GSa/s
• 2M Record Length,
• Video Help function;
• Built in 4G SD Card
• 7'' LCD WVGA 800*480
• 7powerful trigger function,
• USB interface system upgrade;
• VGA Optional
• MSO5074F(G)
• 70MHz
• 8CH(LA)+4CH+
• 12bit Pattern Generator
• 1GSa/s(Analog)
• 500MSa/s (LA)
• DSO/LA/AWG/ Pattern Generator
• 1M Record Length,
• 16CH Logic Analyzer, USB
• interface system upgrade
• 7'' LCD WVGA 800*480
• powerful trigger function;
